Pole with curved arm
Overview
- Poles made of 70 micron hot-dip galvanised EN10025- S235JR in compliance with the UNI EN ISO 1461 (EN40-5) standard.
- The poles are subjected to a hot-dip galvanisation process followed by a pre-treatment for removing organic contaminants.
- A chemical treatment is then applied to create the correct level of adhesion for the next phase of powder coating followed by a phase of polymerisation in a ventilated oven to ensure the curing process for the paint film is complete.
- The treatment and painting cycle guarantees a C4-H durability class in compliance with the UNI EN ISO 12944 standard.
- Treatment and paint cycles with a durability class of C5-H are available on request.
- Cylindrical shape with a diameter of Ø 159 mm.

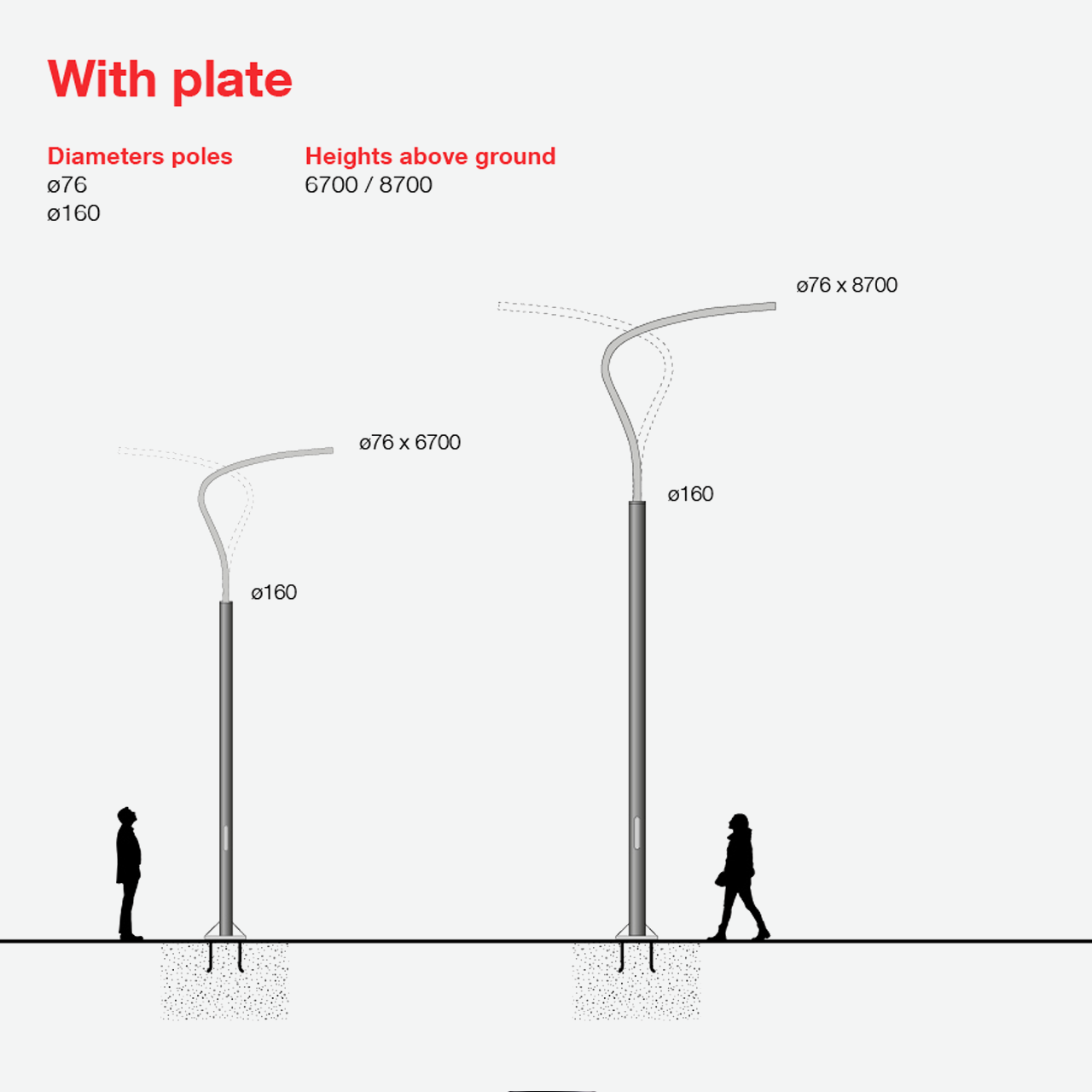

- 70 micron hot-dip galvanised steel anchor plate with 4 slots..
- Counterplate and anchoring bolts need to be ordered separately.
- Poles with an IP44 flush access cover (310x95mm) are earthed inside.
- Class II terminal block with single fuse holder, four poles with three connections each; and 16 mm2 input and 2.5 mm2 output cables to be ordered separately (codes 1863).
- Terminal block code 1863 is IP44 | IK08.

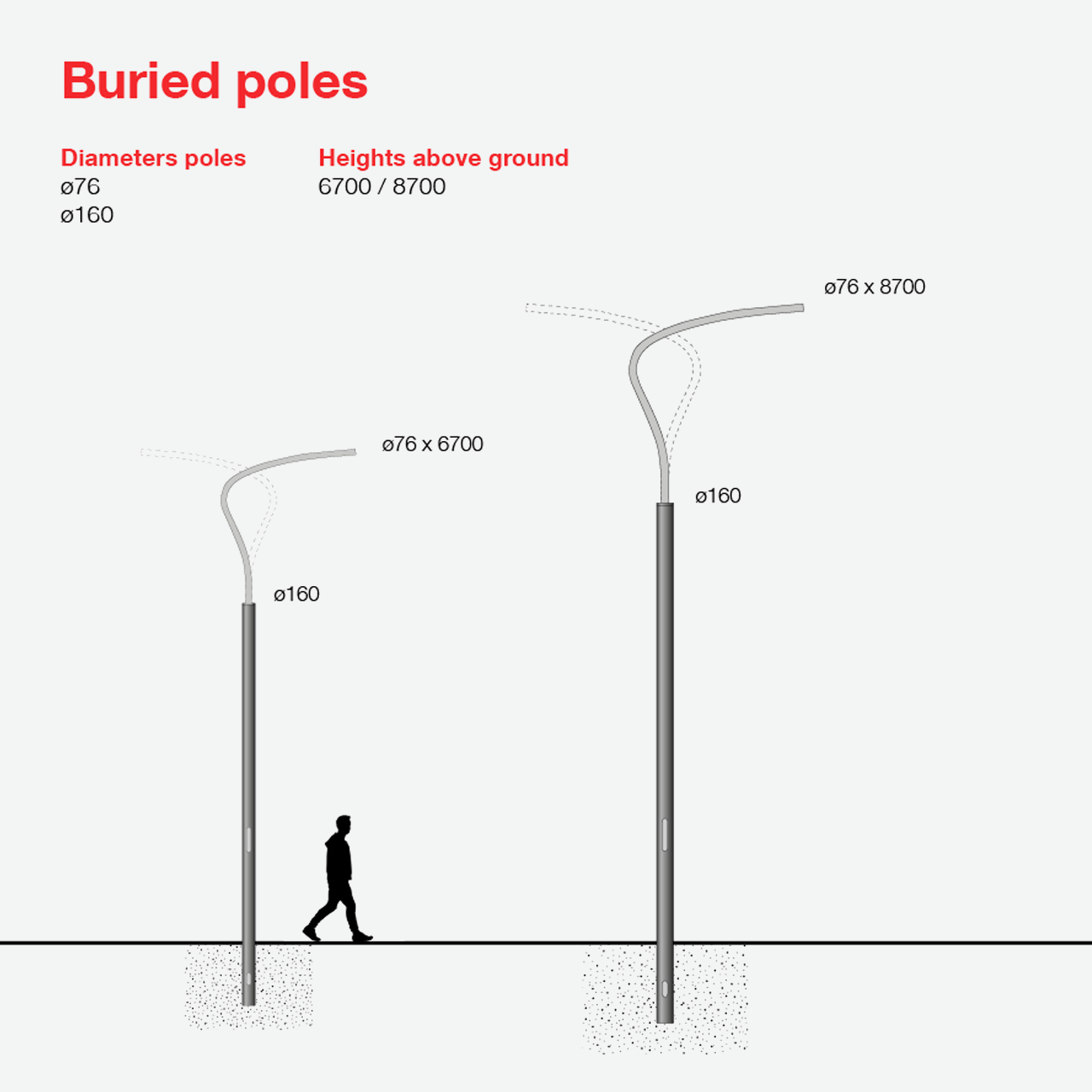

- Versions including a single or double arm (on opposite sides at 180°). The length of the single arm is L=1250 mm.
- The arm is made of S235JR steel and has a diameter of Ø76 mm.
- The arms are fixed to the pole with 4 x M10 screws.
